RBC - ERTMS/ETCS L2/L3

Radio Block Center

OVERVIEW

The RBC9 system is the ECM solution for ERTMS Level 2/Level 3 signaling, with the highest level of safety (SIL4), compliant with Baseline 3 Release 2 of ERTMS/ETCS specifications (UNISIG SRS 3.6.0) and with the high reliability and modularity.

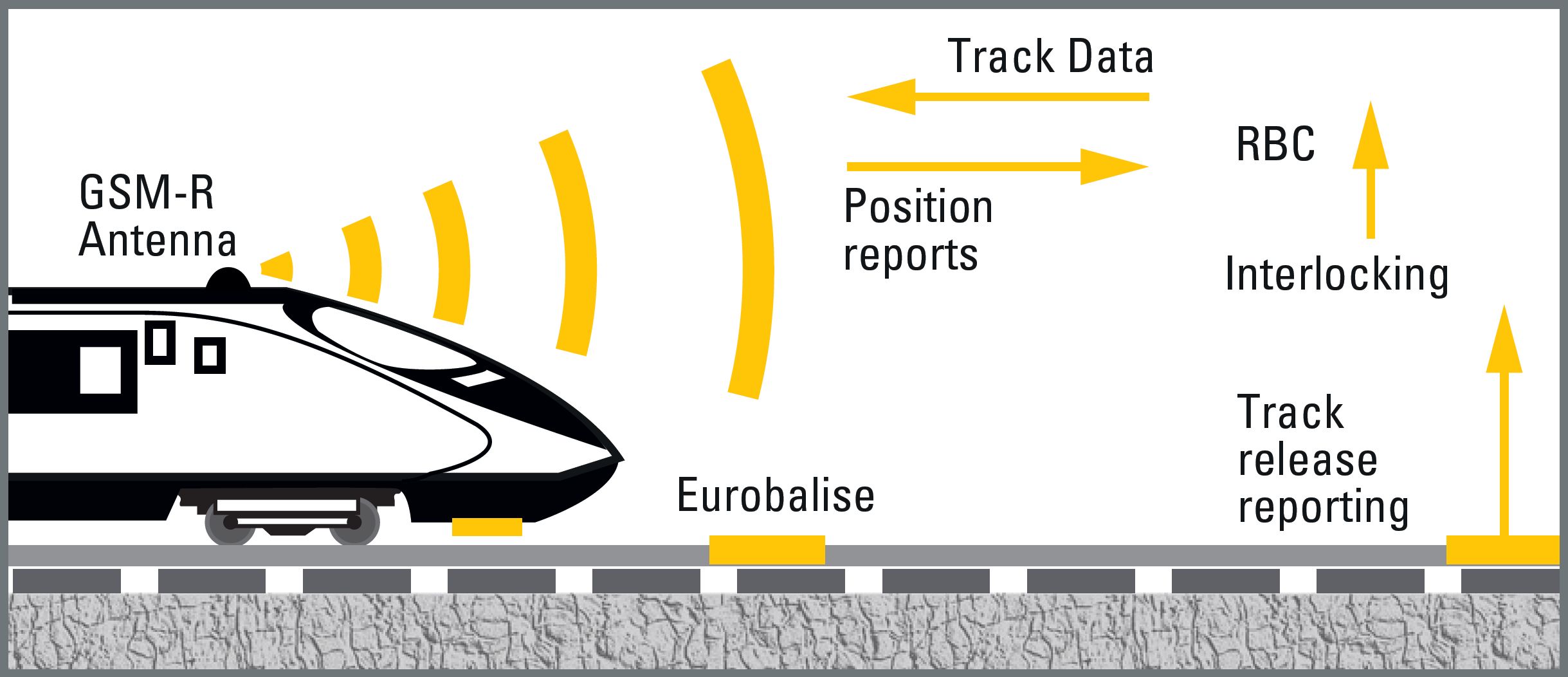

RBC9 allows the safe and continuous control of trains, allowing high speed operation and minimum distancing between trains.

RBC9 receives position reports from trains and communicates with interlocking to issue safety related information (movement authorities) to train via the GSM-R infrastructure.

RBC9 is able to handle 200 trains and 200 km of line including several stations.

COMPONENTS

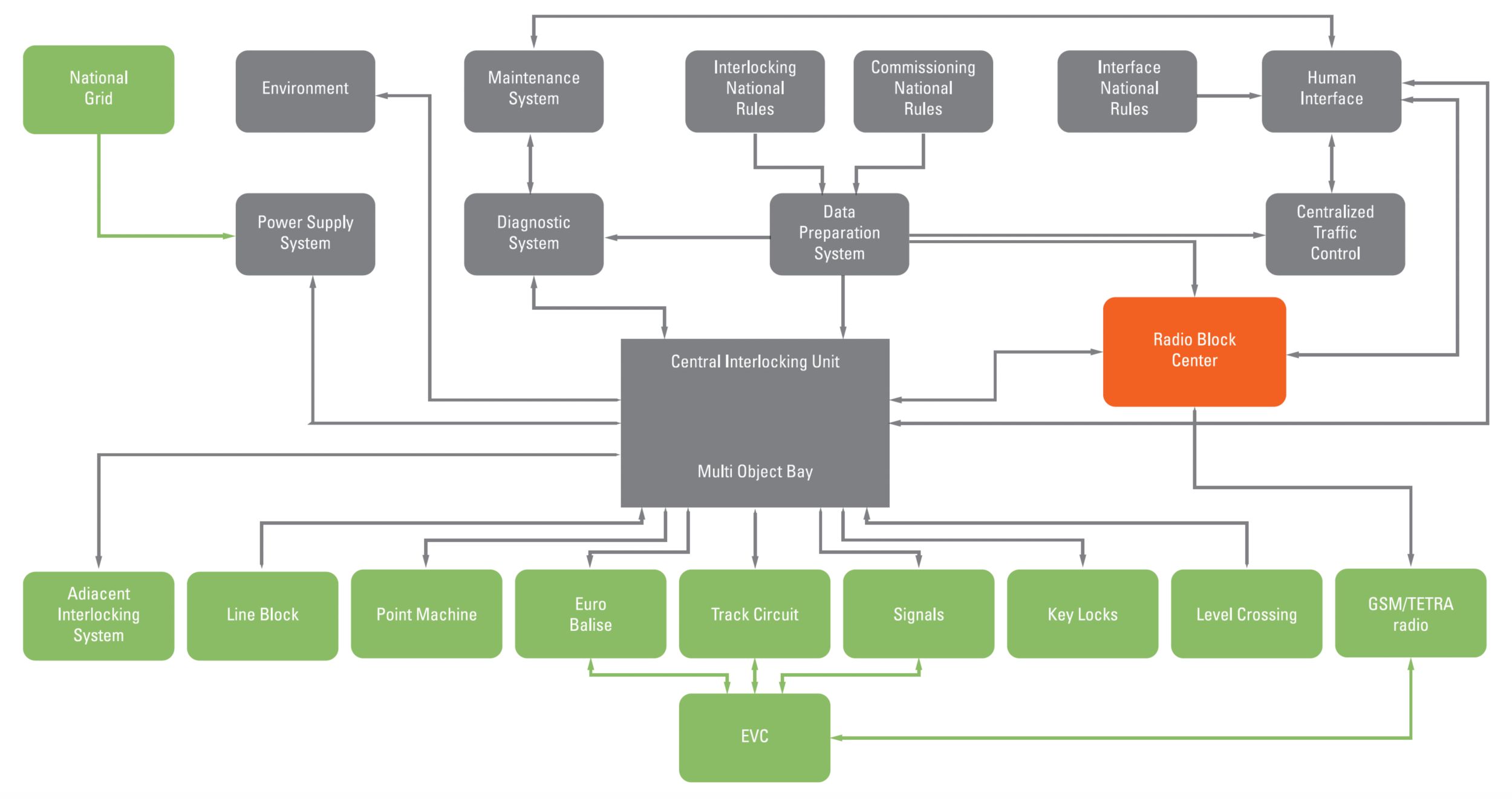

RBC9 fits into context of ECM signalling products. Anyway it could communicate with any interlocking system using the protocol defined in UNISIG Subset-098 or a national communication protocol.

RBC9 Components
of
RBC9 Components

RBC9 offers a complete solution for ERTMS Level 2/Level 3 operation, by means of the following components:

RBC9 Central Unit (RCU): “2 out of 2” SIL 4 Safety Achitecture

Train Communication Subsystem (CC9): industrial solution customized by ECM for GSM-R/ISDN or TCP/IP (UNISIG SUBSET 037) communication management

Event recorder (RCE): recording system logging all radio messages, Movement Authorities and operator commands

Diagnostic system: local and remote diagnostic (via web) are both supported

CDS: operator interface with an high grade of customization capability

RBC9
of
RBC9

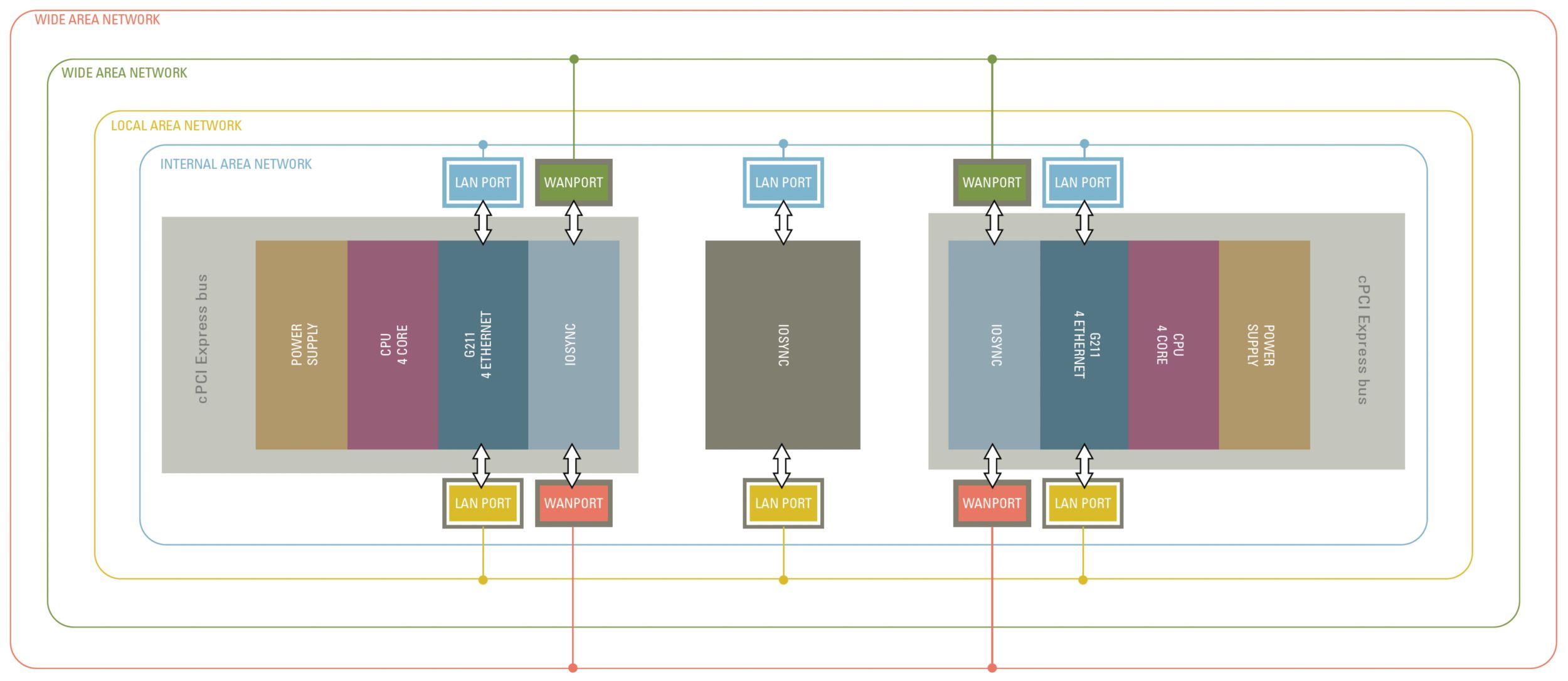

RCU - RBC9 CENTRAL UNIT

“2 out of 2” SIL 4 Safety Achitecture

The generic product guarantees the interoperability according to UNISIG specifications. The generic application guarantees the safety of the movement authorities and it is based on C language. The configuration is user friendly and integrated with ECM CBI (computer based interlocking) configuration tools. The RCU inherits the ECM CBI platform with its characteristics: safety, reliability and modularity.

RCU
of
RCU

CABINET WALK-THROUGH

It is possible to deploy different hardware solutions depending on space, redundancy and geographical needs.

For RBC application you need at least:

RCU x 2

CDS x 1

CC9 x 1

RCE x 1 (the software function could be added to the CDS9 machine)

HMR18
of
HMR18

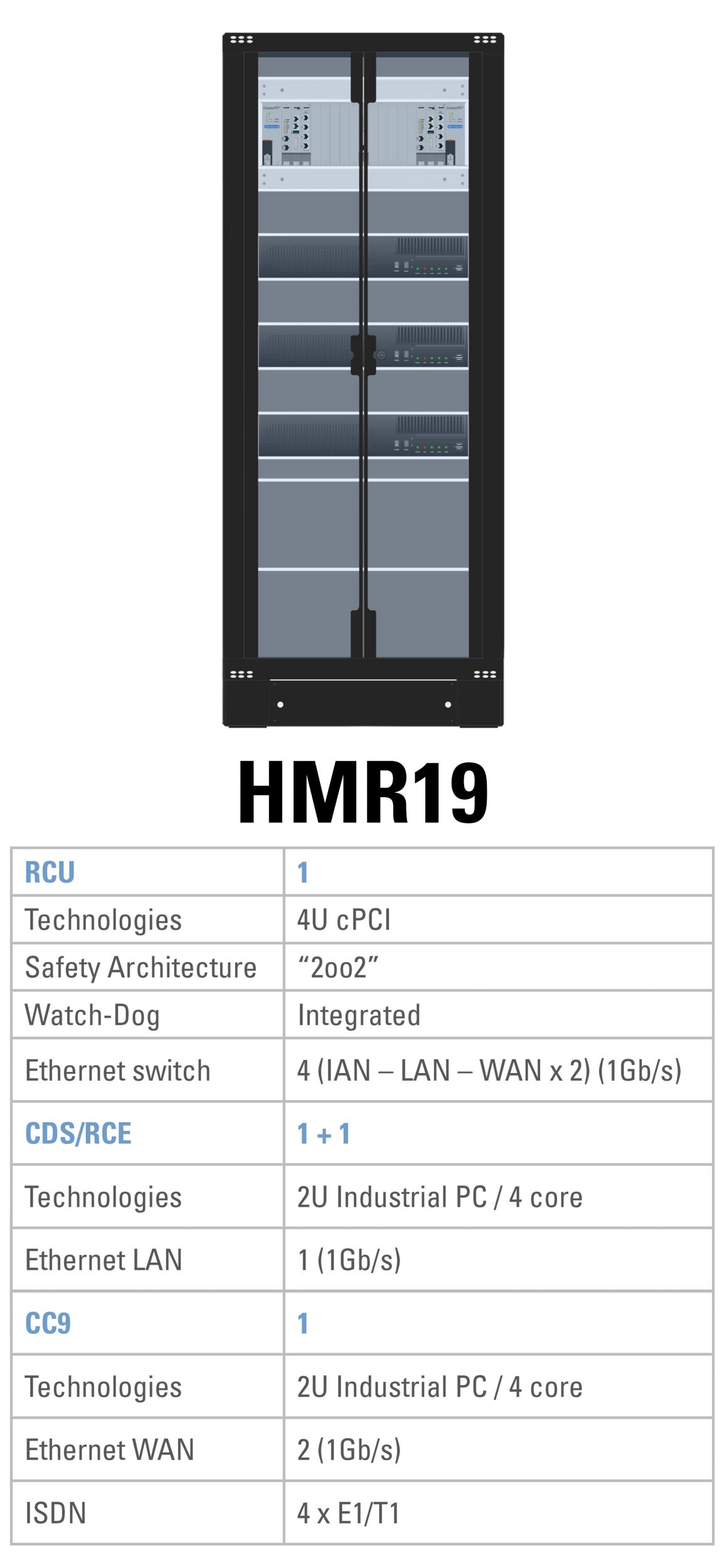

HMR19
of
HMR19

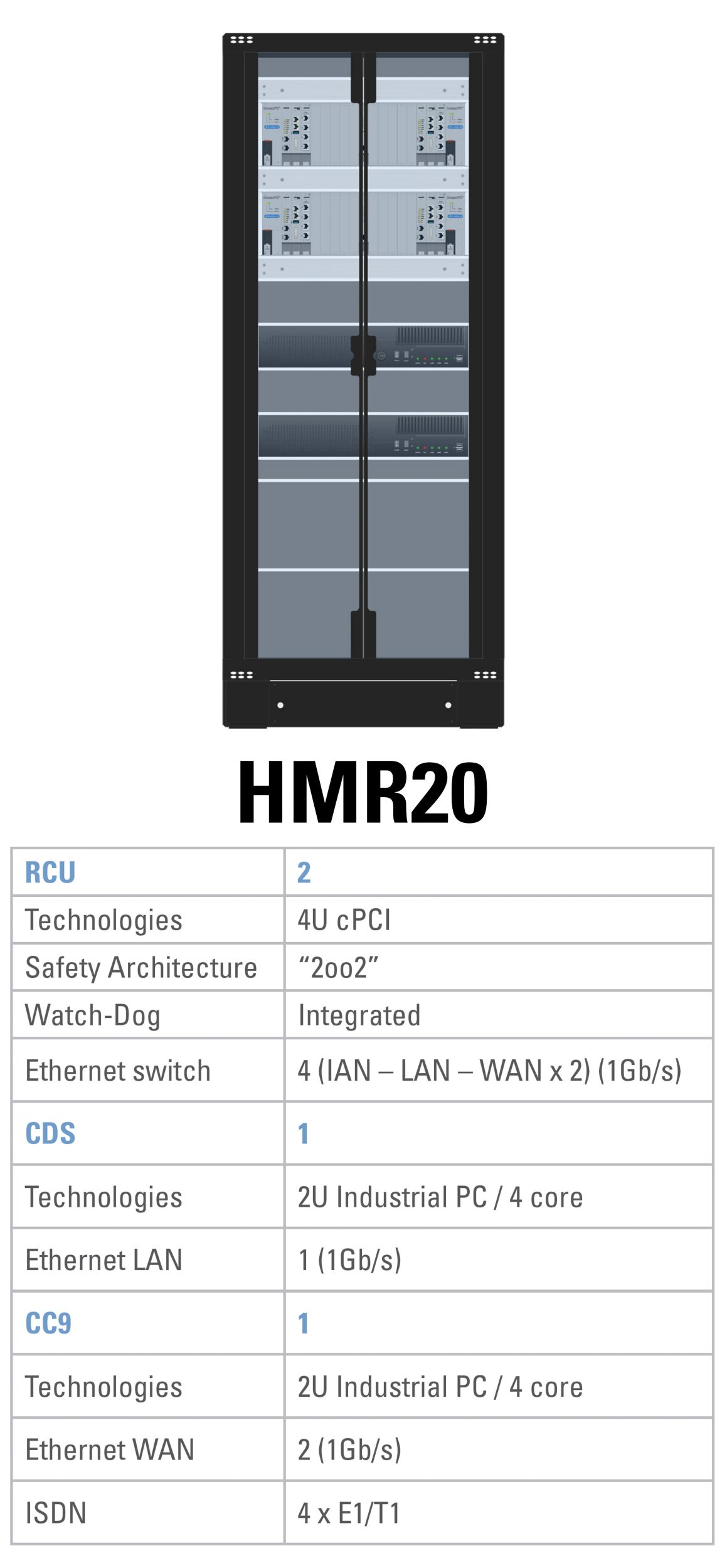

HMR20
of
HMR20

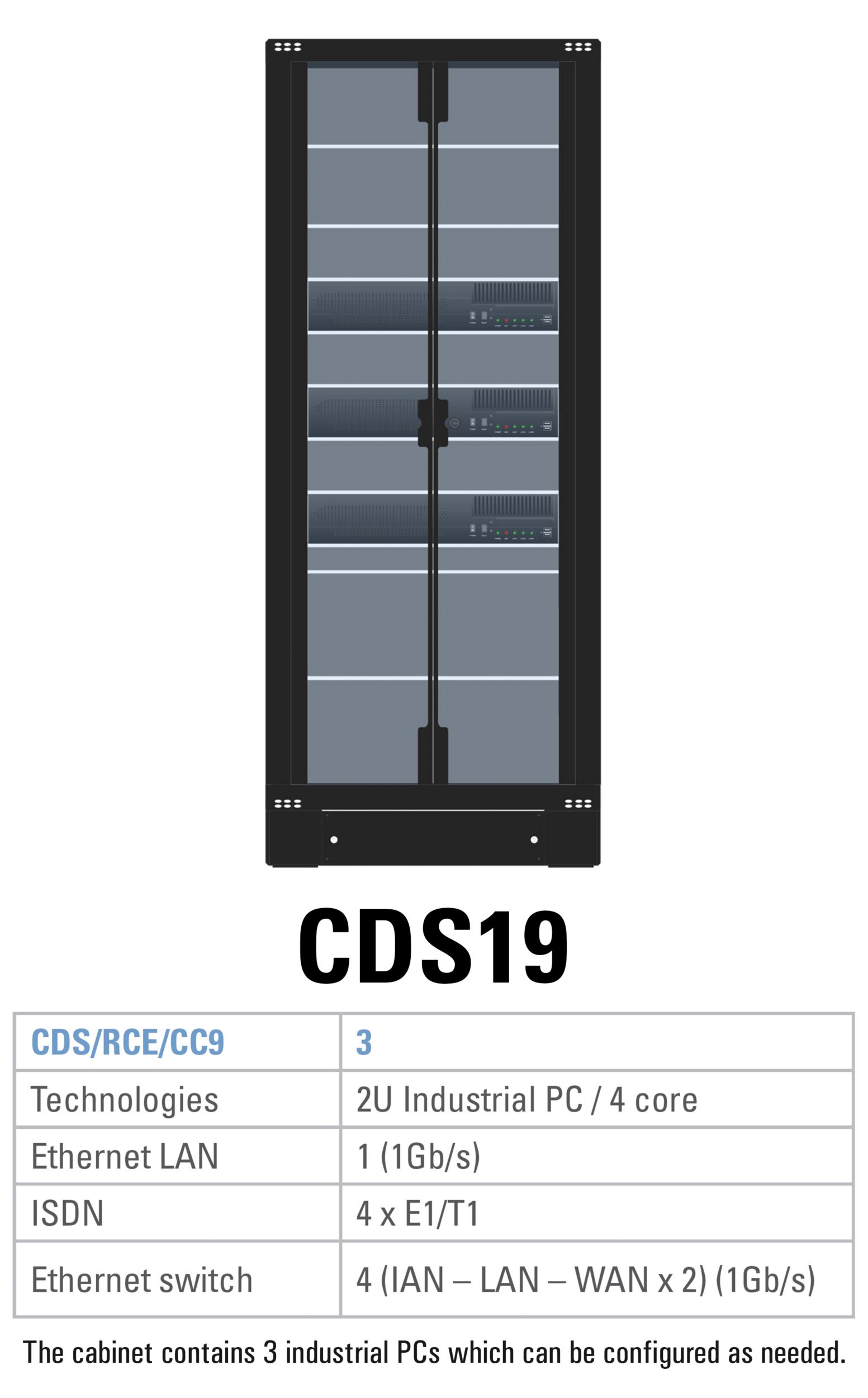

CDS19
of
CDS19

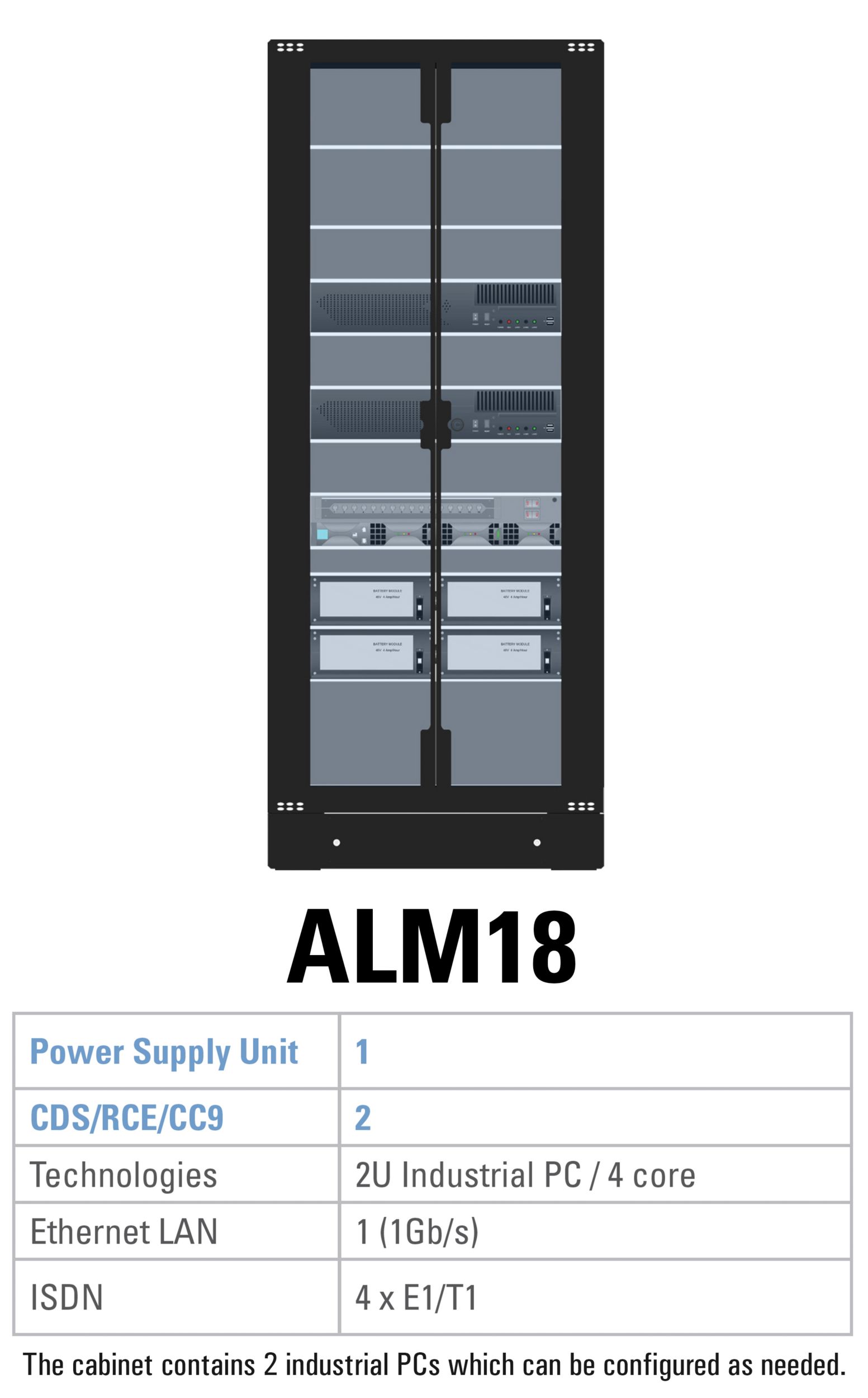

ALM18
of
ALM18

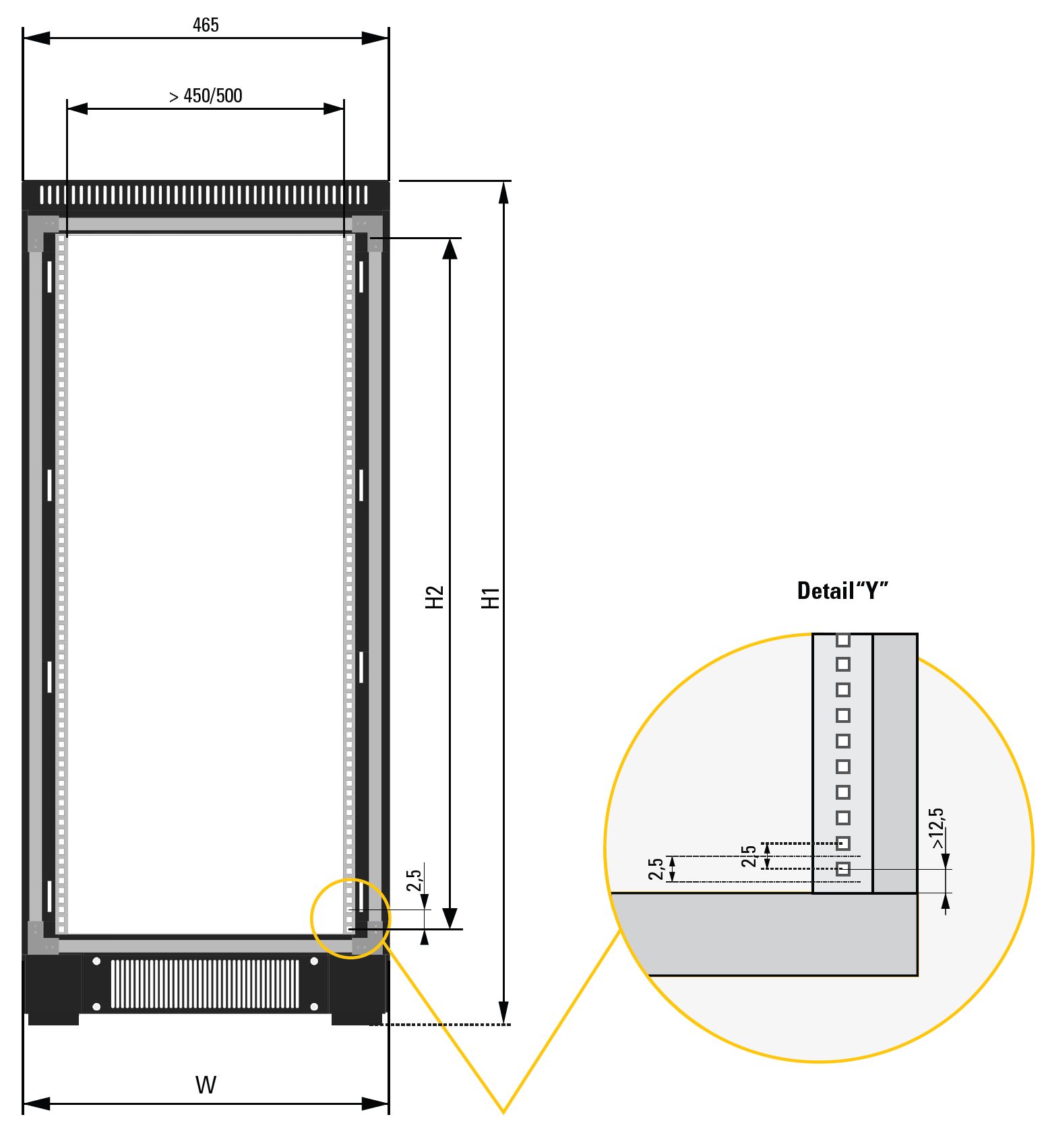

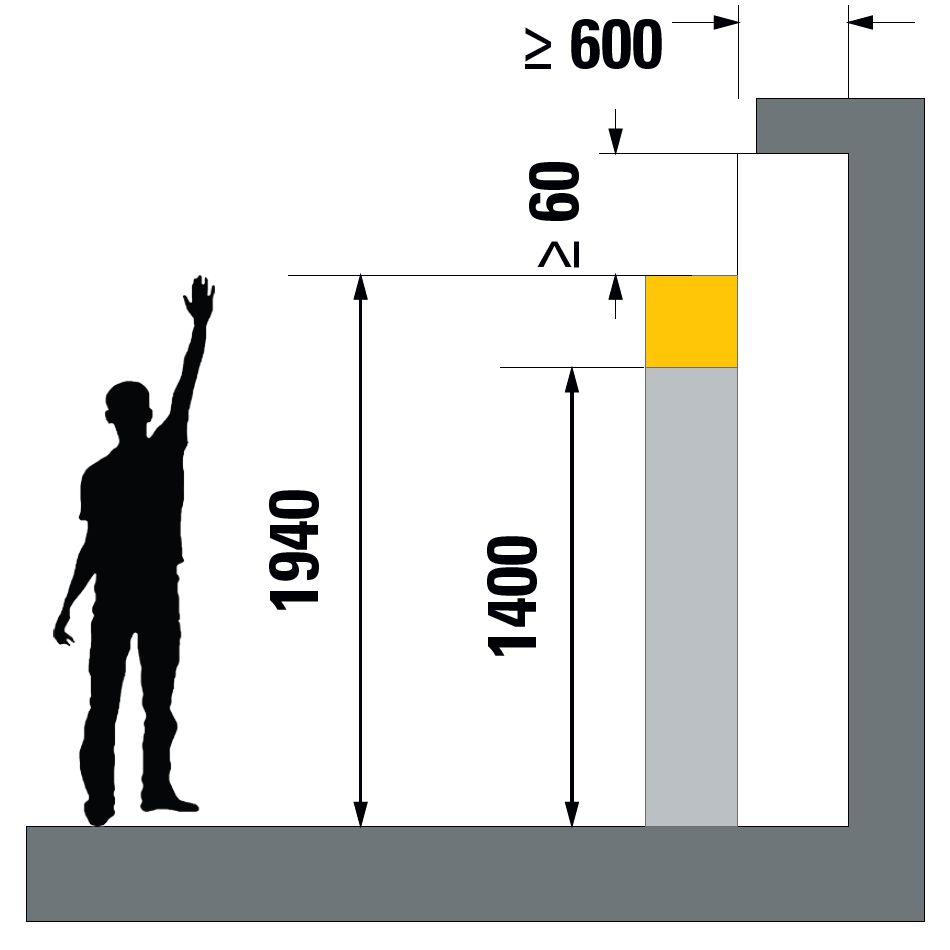

CENTRAL POST CABINET DIMENSIONS

RCU
of
RCU

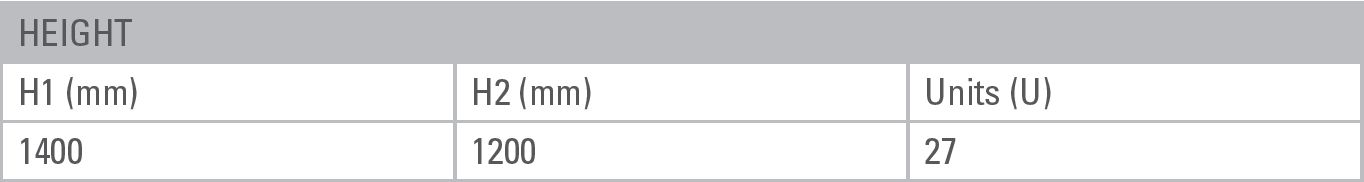

CABINET HEIGHT
of
CABINET HEIGHT

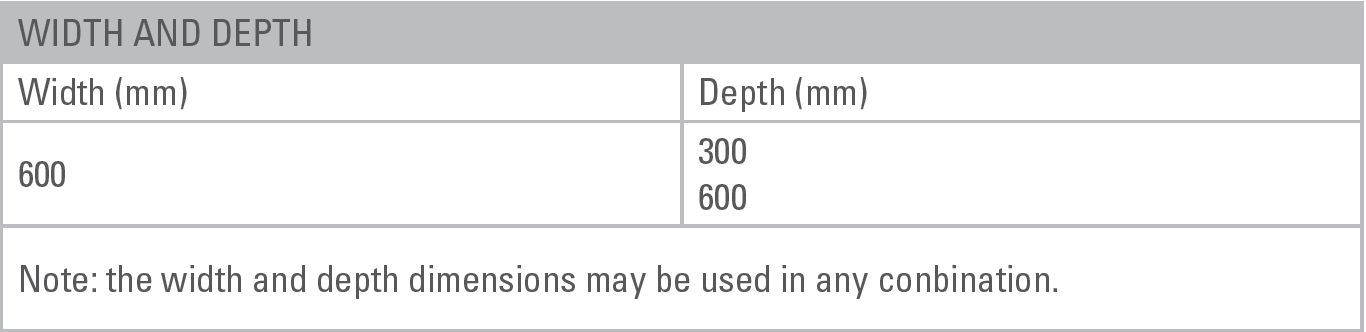

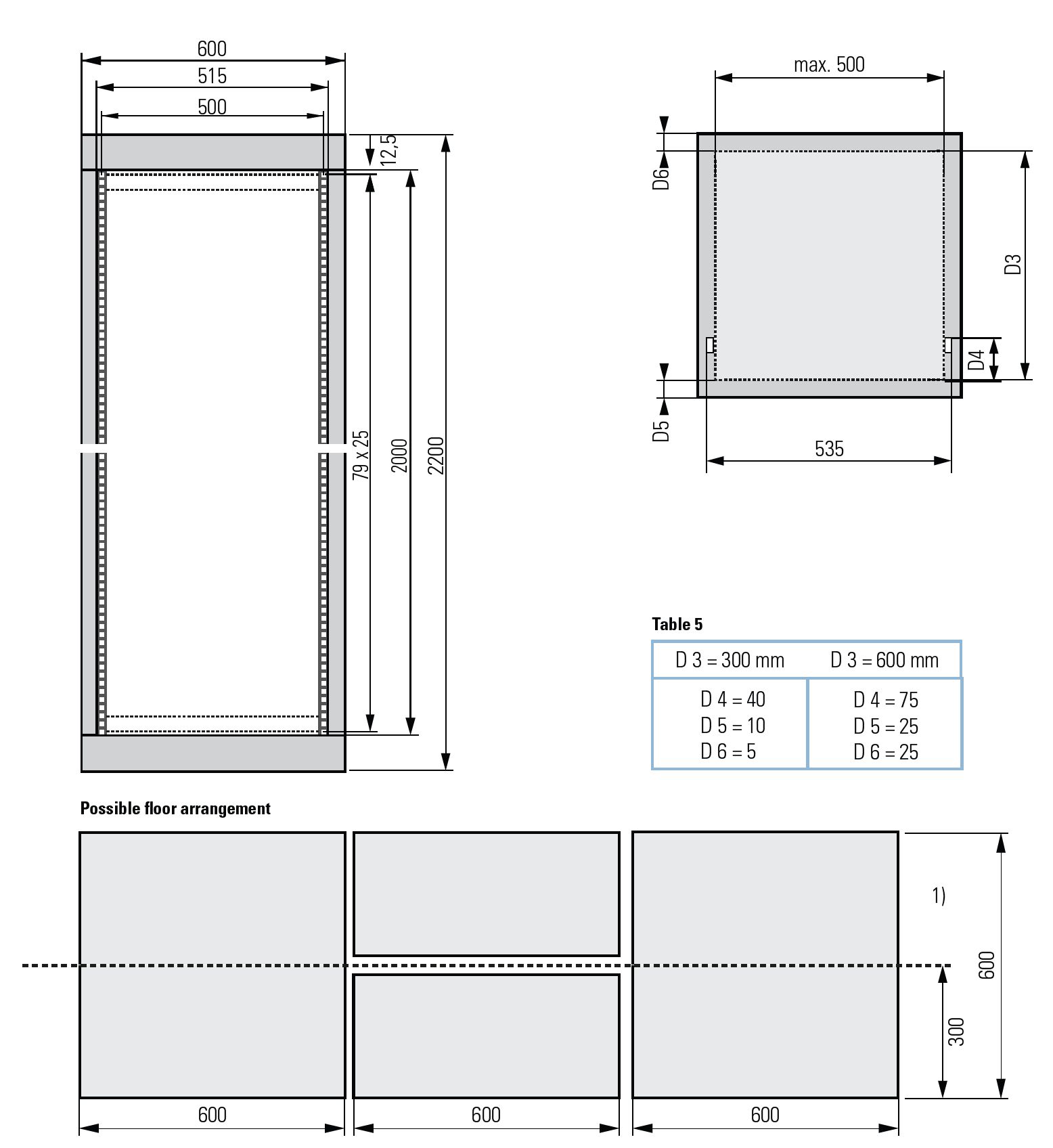

CABINET WIDTH DEPTH
of
CABINET WIDTH DEPTH
RCU
of
RCU
RCU
of
RCU
