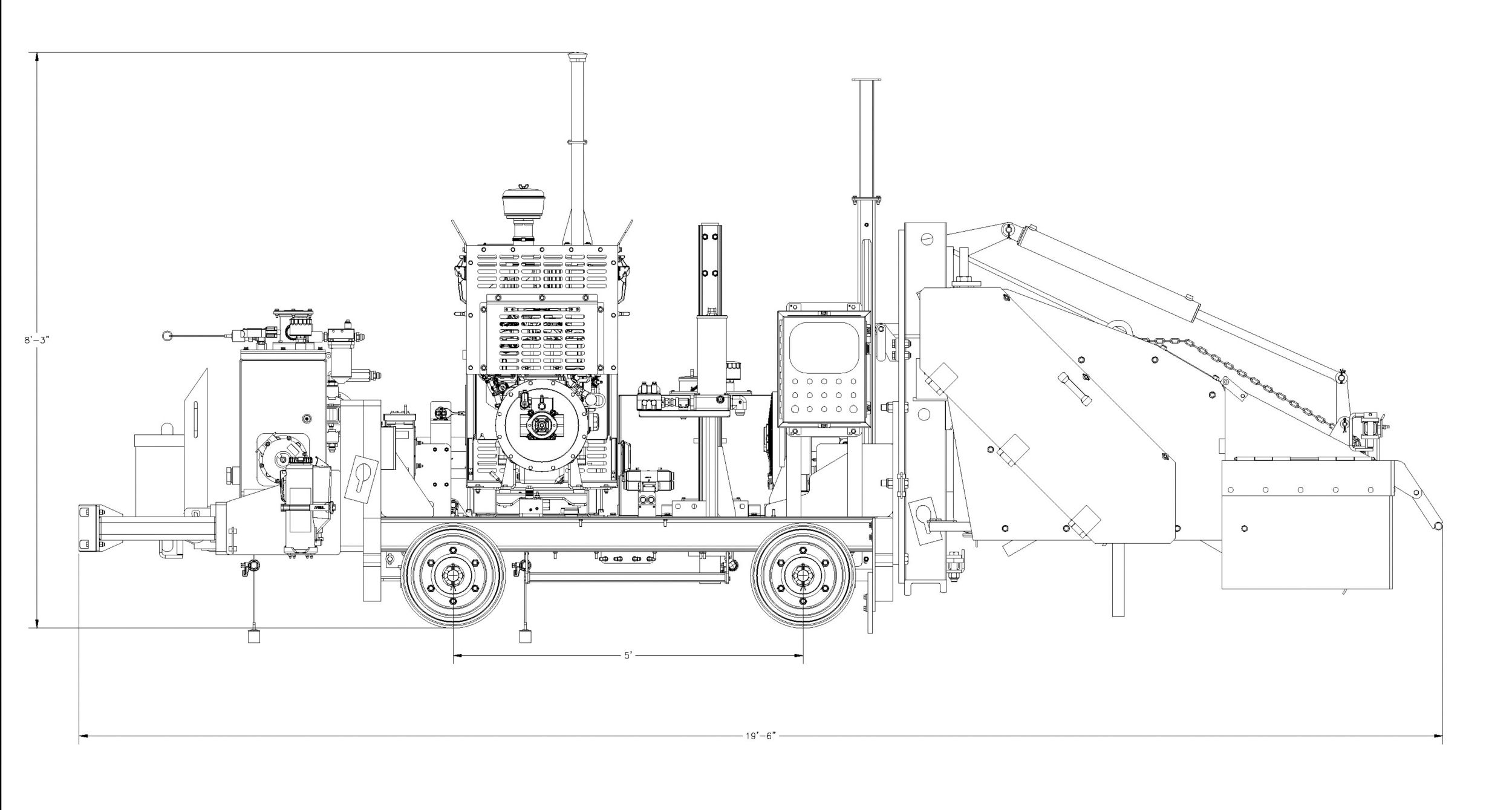

The Kershaw® 35-13 is a heavy-duty brush wheel tie plate broom capable of removing all ballast and debris from the tie plate areas after new tie insertion in high-speed gangs.
Frame: The main frame is of all-welded construction using heavy six-inch structural channel. Cross members are of five-inch channel with reinforcements.
Weight: 16,500 lbs.
Engine: Caterpillar C2.2 40 hp @ 2800 rpm Tier IV Final
Propel System: Three-inch diameter solid steel alloy axles with direct chain drive. A drive sprocket disconnect kit is provided for use when towing. Maximum towing speed is 16 mph.
Wheels & Brakes: 16 inch cast steel wheels. Spring applied, hydraulic released fail safe brakes on right side wheels. Heavy-duty axle bearings.
Electrical System: 12 volt dc negative ground. System maintained by engine driven 85 amp alternator. Color-coded and numbered wiring.
Hydraulic System: A variable displacement, pressure compensated pump operates at 2000 psi. Valves are electric solenoid controlled. They hydraulic tank houses a 100 mesh suction screen and a 10-micron return line filter.
Capacities: Fuel: 22 gal. (83 liters), Hydraulic: 53 gal. (200 liters), Engine Crankcase: 8.5 qt. (8 liters)
Work Interrupt System: A work interrupt system stops the machine when an obstacle is encountered. An optional crossing work interrupt system stops the machine when the machine approaches a crossing.
Options: Crossing interrupt system, drag leg, air-operated propel clutch.
Dimensions: Length: 19 ft. 6 in., Width: 10 ft. 3 in., Height: 8 ft. 3 in.
