MORE THAN JUST A BLACK BOX
The Progress Rail PowerView Locomotive Event Recorder is built on our legacy of railroad event recorders and innovative data acquisition products and solutions.
POWERVIEW EVENT RECORDER

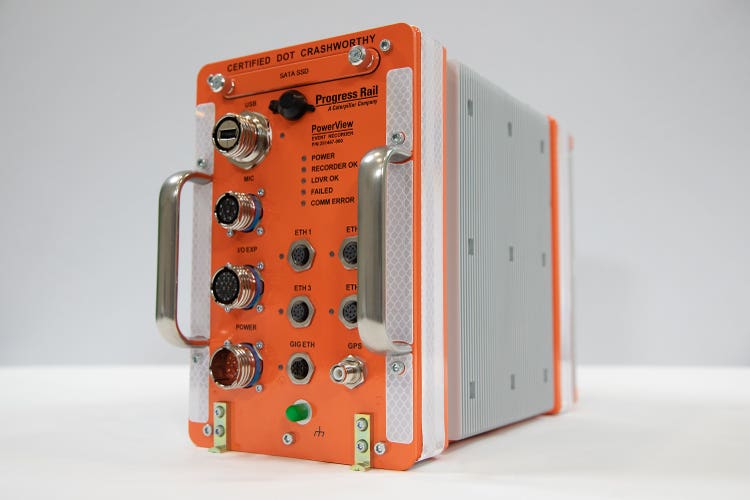

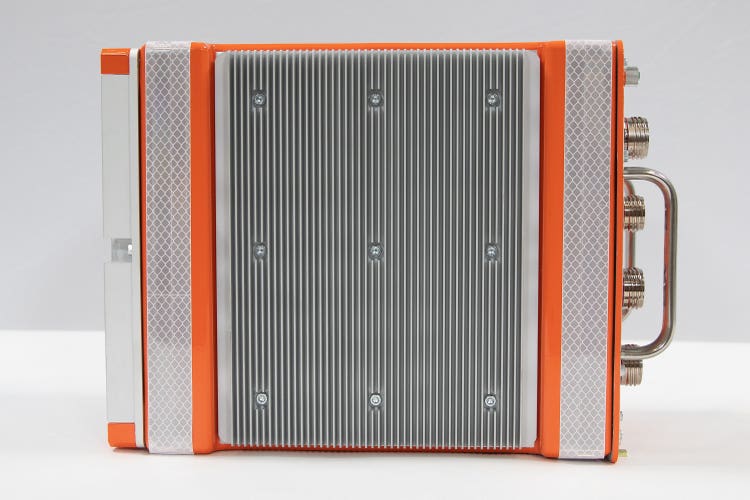

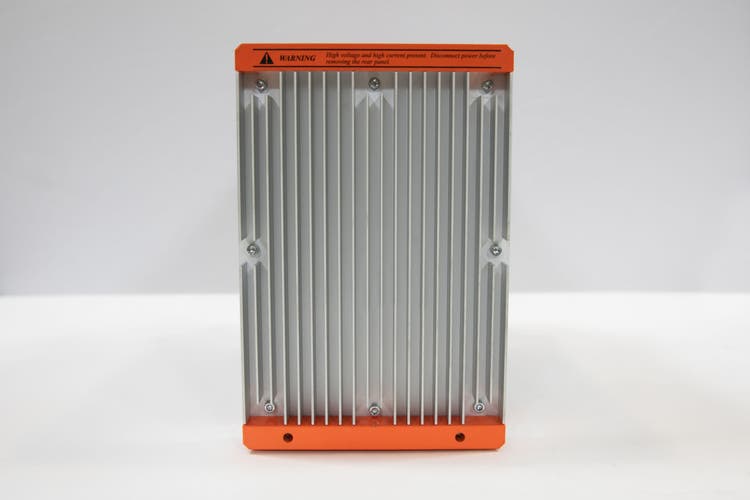

The Progress Rail PowerView Locomotive Event Recorder is built on our legacy of railroad event recorders and innovative data acquisition products and solutions.

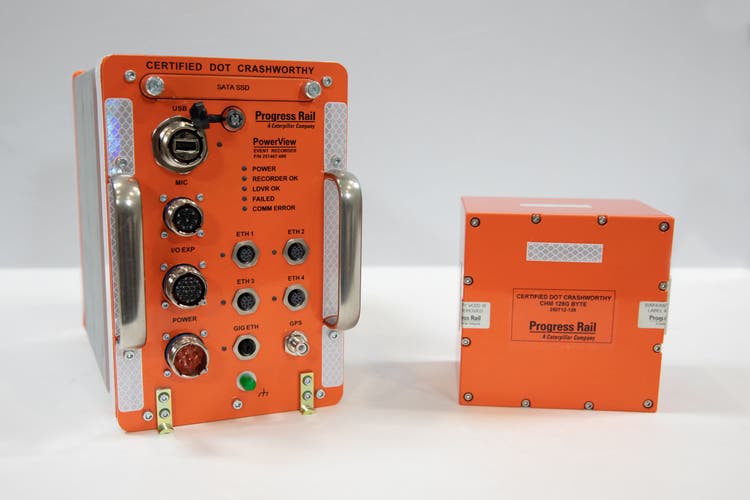

PowerView directly integrates into the EMD® FIRE display as well as other locomotive systems, and contains an integrated, internal, field replaceable crash-hardened memory module.
The recorder has a full industrial switch and multiple Ethernet ports for flexible network connectivity, as well as digital inputs with the capability to add additional inputs for various requirements.
The included SATA drive bay with locking mechanism, when combined with industry-standard network IP cameras and a solid state drive, optionally expands PowerView to include full LDVR functionality.
Network flexibility enables multiple cameras as well as multiple camera types to be used, all in a single MCU 5unit, saving critical space for other locomotive electronics.
It offers industry leading processing capability and secure, tamper-proof storage capacity, all in a compact design that meets industry shock and vibration specifications.
The recorder also focuses on ease of use. Integrated GPS for auto time synchronization, as well as a WebGUI interface allows easy access for configuration, system functions, and data access.
The Event Recorder comes with Progress Rail’s next generation PowerView Event Playback software for downloading and analyzing secure Event Recorder data.
Ethernet
4x 10/100 Fast Ethernet ports, M12 connectors, A-coded 8-pin 1x GbE Ethernet port, M12 connector, X-coded 8-pin Full TCP/IP
Serial
2x RS-422/485 Full / Half Duplex Synchronous (up to 19200 baud)/Asynchronous (up to 57600 baud)
Digital Inputs
4x 30-80 VDC Optically Isolated States: ON, OFF, Toggle (user defined) Configurable, Expandable via RS-485 port and additional input modules
Audio
Dual Balanced-line audio input
USB
USB download port with cover
Clock
Internal real-time clock w/battery back-up
GPS
GPS receiver with RP-TNC antenna connector
User Interface
WebGUI via browser (IE, Firefox)
Diagnostic and Health
Status Indicator LEDs on front panel Detailed diagnostics via WebGUI
System Requirements
Windows 7 32/64 bit
Windows 8 32/64 bit (including touch)
Intel Core i3, 4 GB Ram
Data Storage

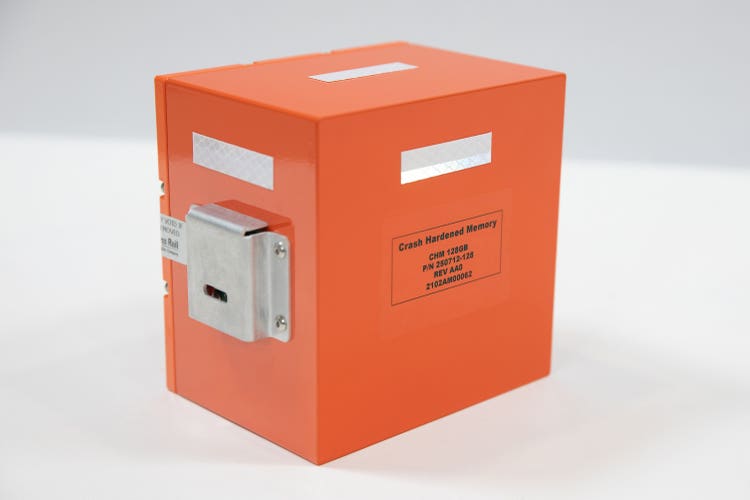

Internal Crash Hardened Memory Module
Meets 49 CFR Part 229
Multiple capacities available
SATA Drive Bay*(SSD optional)*
Accepts industry-standard 2.5 inch Solid State Drive (SSD)
Key Lock mechanism – auto shut down when unlocked
Options
LDVR Capability
IP Network Camera(s)
Multiple Quantity and types
Multiple Frame Rate
Multiple Resolutions
Supports multi-streaming
*Solid-state drive (SSD) required
Compression
Supports H264, MJPEG, and other
Dimensions:
LSI 5 MCU Rack Mount
Width: 6.19 inches
Length: 11.5 inches
Height: 9.25 inches
Weight: 24 lbs
Relative Humidity:
0% to 95% non-condensing
Operating Temperature:
-40 C to +70 C
Storage Temperature:
-50 C to +85 C
Power:
Operating Voltage 40-90 VDC
Voltage Range 20-135 VDC
Current Draw 15 Watts Max
Reverse polarity protection
Overvoltage protection
Meets the following specifications:
FRA 49 CFR Part 229, AAR S-9101B
AAR S-9401 (5702), IEEE 1482.1 compliant
Dimensions:
LSI 5 MCU Rack Mount
Width: 6.19 inches
Length: 11.5 inches
Height: 9.25 inches
Weight: 24 lbs
Relative Humidity:
0% to 95% non-condensing
Operating Temperature:
-40 C to +70 C
Storage Temperature:
-50 C to +85 C
Power:
Operating Voltage 40-90 VDC
Voltage Range 20-135 VDC
Current Draw 15 Watts Max
Reverse polarity protection
Overvoltage protection
Meets the following specifications:
FRA 49 CFR Part 229, AAR S-9101B
AAR S-9401 (5702), IEEE 1482.1 compliant

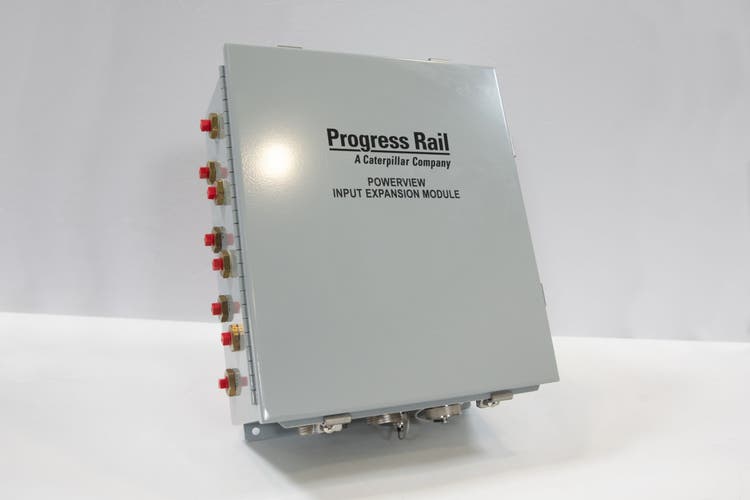

POWERVIEW INPUT EXPANSION MODULE

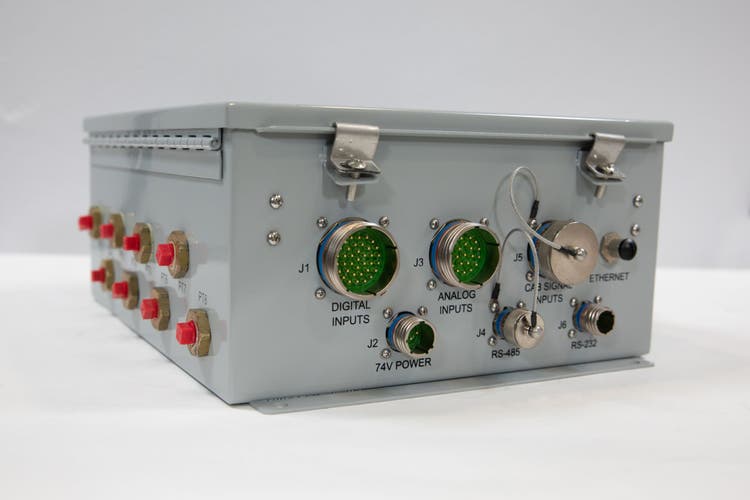

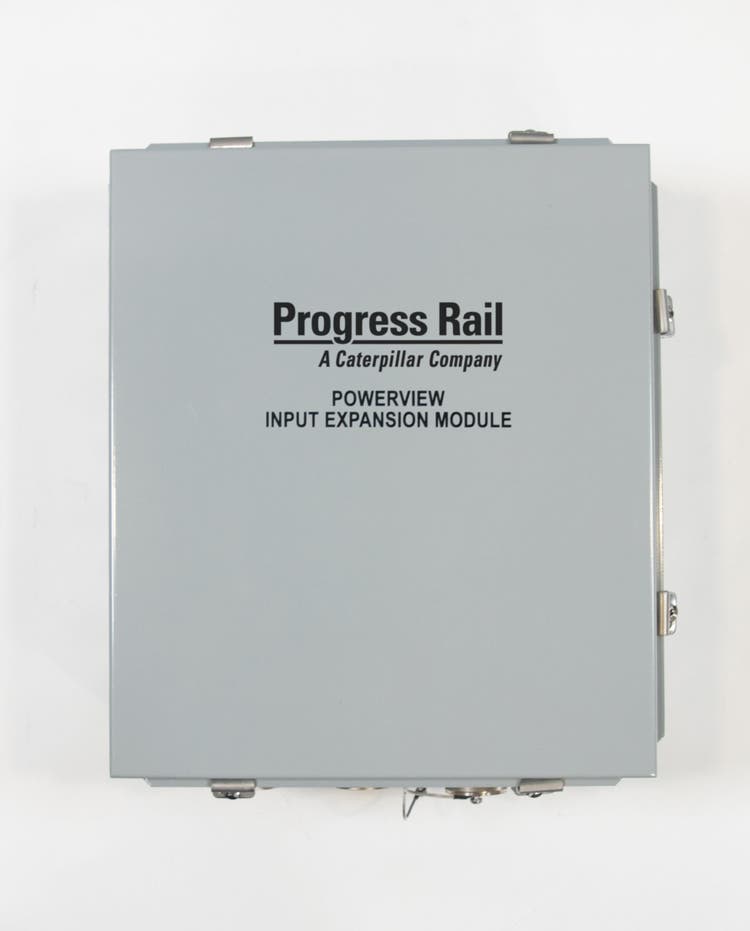

The Progress Rail PowerView Input Expansion Module (IEM) is a signal interface/collector which enables nonintegrated locomotives to send data to the Progress Rail PowerView product line as well as EMD and other systems.
The IEM module collects data from various analog, digital, and airbrake pressure signal sources on the locomotive and aggregates this data and sends via Ethernet to the Progress Rail PowerView system and other systems.
The IEM module has an expansive array of analog, digital, cab signal, airbrake, axle tachometer, and current monitoring inputs.
Data communications is via an M12 Ethernet port, and supports multiple industry protocols such as Class C/D messaging.
Additional Traction Motor Current and Generator Voltage modules are available. These modules enable monitoring of locomotive Traction Motor and Generator current and voltage in a module that can positioned in a variety of locations. Connection to the IEM is via 4- 20ma current loop.
When combined with the PowerView Event Recorder and Event Playback software, the Progress Rail PowerView system provides a complete next-generation Locomotive Event Recorder system for nonintegrated locomotives.
Ethernet
1x 10/100 Fast Ethernet ports, M12
connectors, A-coded 8-pin
TCP/IP
AAR Class C/D output messages
Serial
1x RS-485 Half Duplex
Asynchronous Isolated
External Sensors via Modbus
1x RS-232 Full Duplex
Asynchronous Isolated
End of train
Digital Inputs
33 x 30-80 VDC General Purpose
1 30-80 VDC Generator Field input
10 x 12-32V Cab Signal Inputs
Analog Inputs
7 x 0-80V .1V resolution
1 x 0-16V .1V Resolution
6 x 0 to +- 10V .1V Resolution
Tachometer Input
Configurable pulses per revolution
Pulse or sine wave input
Pressure Inputs
8 x analog or digital
Configurable (at ordering)
4-20 ma Inputs
7 x Connect to remote sensors
Traction motor currents
Main Generator Voltage
Or other 4-20ma sensors
Configuration
Configurable inputs by file upload
Input Scaling, Debounce,
Report Frequency, IP Address
Generates programmable AAR Class C
Format Tag Data
Progress Rail PowerView System
Event Recorder
CHM
IP Network Camera(s)
Alerter Module
Mag Valve Output
Audio Warning
LED warning
Dimensions
Width: 12.98 inches
Length: 15.52 inches
Height: 6.29 inches
Weight: 10 lbs.
Relative Humidity
0% to 95% non-condensing
Operating Temperature
-40 C to +70 C
Storage Temperature
-50 C to +85 C
Power
Operating Voltage 40-90 VDC
Voltage Range 20-135 VDC
Reverse polarity protection
Overvoltage protection
Isolation
Inputs isolated in banks
80 V Digital/Analog
32 V Digital
16 V Analog
+-10 V Analog
Tachometer
Pressure
4-20 ma
Meets the following specifications:
FRA 49 CFR Part 229
AAR S-9401 (5702)
IEEE 1482.1 compliant
