EMD® SD70ACe-BB

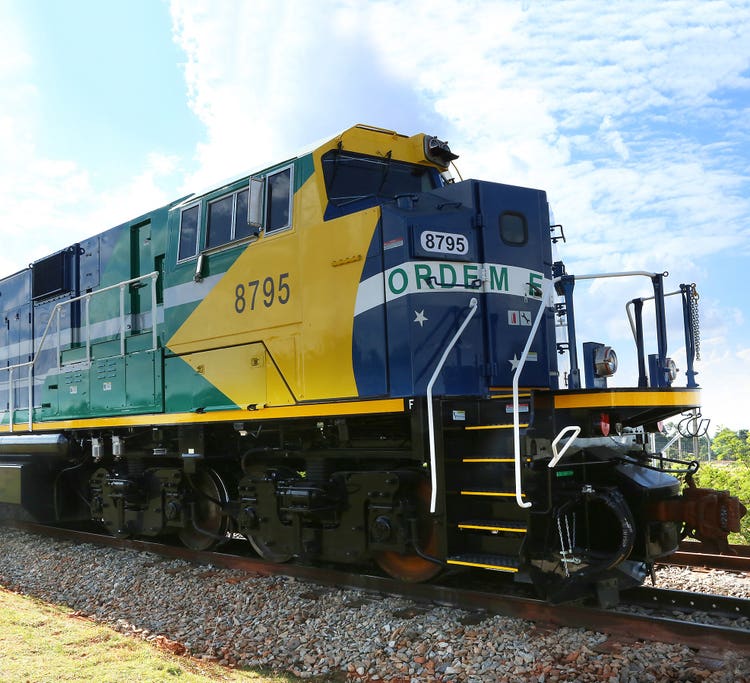

The EMD® SD70ACe-BB Locomotive was custom designed for Brazil’s uniquely challenging operating environment. This eight-axle, meter-gauge locomotive provides increased tractive effort and capacity to haul more freight. It is also equipped with the EMD® 710 engine, AC traction and a cab custom designed for operator safety and comfort.

DOWNLOAD BROCHURE

OVERVIEW
FEATURES
TECHNICAL DETAILS
VIDEO

CONTACT SALES

EMD® SD70ACe-BB OVERVIEW

For more than 90 years, we have produced the most durable, reliable and sustainable locomotive products and services in the rail industry. We design, manufacture and sell diesel-electric locomotives for all commercial railroad applications, with 65,000 EMD^®-powered locomotives delivered to more than 75 countries. Our technology leadership and superior performance drive our reputation for exceptional quality, service and innovation.

The EMD^® SD70ACe-BB Locomotive was custom designed for Brazil’s uniquely challenging operating environment. This eight-axle, meter-gauge locomotive provides increased tractive effort and capacity to haul more freight. It is also equipped with the EMD^® 710 engine, AC traction and a cab custom designed for operator safety and comfort.

The advanced technologies of the SD70ACe-BB provide safety, reliability, efficiency and sustainability, while delivering life-cycle cost optimization and leading performance. It joins thousands of EMD^® SD70ACe Series locomotives operating in demanding heavy-haul service across the globe, including North America, South America, the Middle East, Africa and Australia.

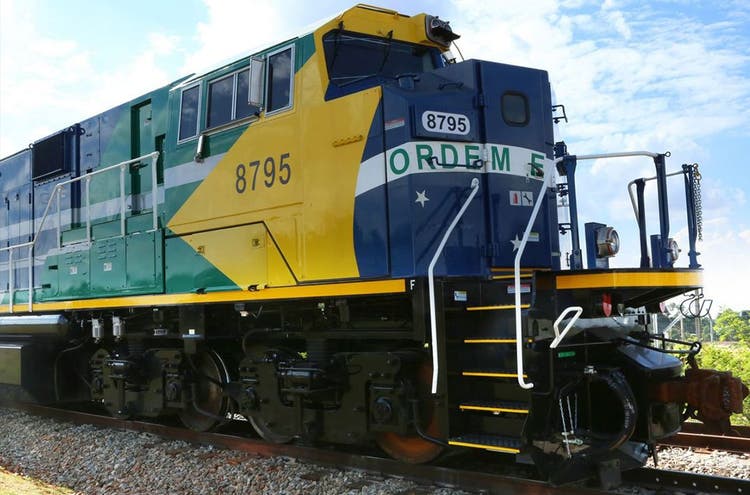

EMD® SD70ACe-BB Freight Locomotive

FEATURES

Highly reliable 16-cylinder 710 engine, turbocharged
- Equipped with EPA Tier 1 emissions hardware
- Optimized for fuel efficiency
- Operates on B20 (concentrations up to 20% B100 Biofuel)

Isolated cab for reduced operator exposure to noise and vibration

High performance AC traction system

EMD^® GBB four-axle bogie for excellent curving performance

Extended 184-day maintenance interval

Available with energy management technologies including Smart Consist™

Optional IntelliTrain^® - remote monitoring and diagnostic services

EM2000™ - Microprocessor Control System

Excitation and load control

Adhesion control

Engine control

Diagnostic system

Archived unit history data

TECHNICAL DETAILS

Locomotive Traction System AC Traction

Diesel Engine 16-710G3C-T1

Number of Axles 8

Locomotive Height 4,643 mm

Length Over Couplers 24,003 mm

Traction Horsepower 3,240 kW

Maximum Speed 80 kph

Starting Tractive Effort 724 kN

Dynamic Braking Effort 350 kN

Fuel Capacity (usable) 15,200 liters

Maintenance Interval 184 days

Maximum Weight 196 mT

Axle Load 24.5 mT

Track Gauge 1,000 mm

Designed for Brazil
