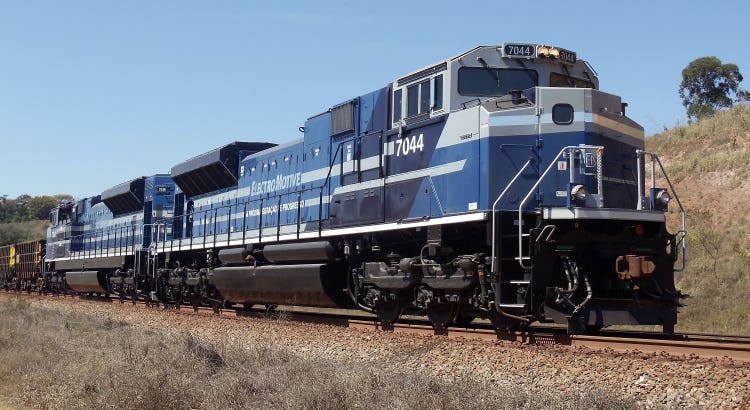

EMD® SD70ACe/45

EMD® SD70ACe/45 OVERVIEW

For more than 90 years, we have produced the most durable, reliable and sustainable locomotive products and services in the rail industry. We design, manufacture and sell diesel-electric locomotives for all commercial railroad applications, with 65,000 EMD^®-powered locomotives delivered to more than 75 countries. Our technology leadership and superior performance drive our reputation for exceptional quality, service and innovation.

The EMD® SD70ACe/45 locomotive was custom designed for Brazil’s uniquely challenging operating environment. This six-axle, broad-gauge locomotive provides increased tractive effort and capacity to haul more freight. It is also equipped with the EMD® 710 engine, AC traction and a cab custom designed for operator safety and comfort.

The advanced technologies of the SD70ACe/45 provide safety, reliability, efficiency and sustainability, while delivering life-cycle cost optimization and leading performance. It joins thousands of EMD^® SD70ACe Series locomotives operating in demanding heavy-haul service across the globe, including North America, South America, the Middle East, Africa and Australia.

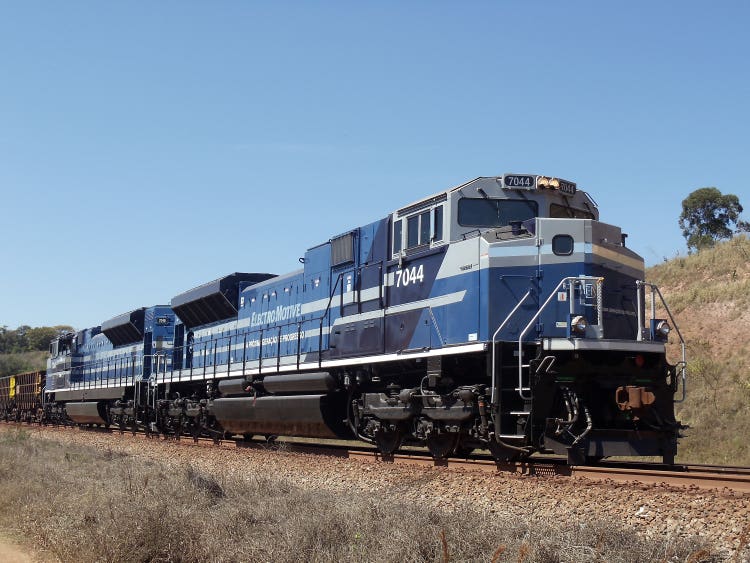

EMD® SD70ACe/45 Freight Locomotive

FEATURES

• Highly reliable 16-cylinder 710 engine, turbocharged

  • Equipped with EPA Tier 1 emissions hardware
  • Optimized for fuel efficiency
  • Operates on B20 (concentrations up to 20% B100 Biofuel)

• Isolated cab for reduced operator exposure to noise and vibration

• High performance AC traction system

• KNORR CCBII with Distributed Power

• Non-radial HTSC-II bogie

• Extended 184-day maintenance interval

EM2000™ - Microprocessor Control System

• Excitation and load control

• Adhesion control

• Engine control

• Diagnostic system

• Archived unit history data

TECHNICAL DETAILS

Locomotive Traction System AC Traction

Diesel Engine 16-710G3C-T1

Number of Axles 6

Locomotive Height 4643 mm

Length Over Couplers 24003 mm

Traction Horsepower 3240 kW

Maximum Speed 80 kph

Starting Tractive Effort 724 kN

Dynamic Braking Effort 350 kN

Fuel Capacity (usable) 15200 liters

Maintenance Interval 184 days

Maximum Weight 196 mT

Axle Load 32,5 mT

Track Gauge 1435 mm or 1600 mm

Designed for Brazil
