MTPS

OVERVIEW

MTPS is ECM™'s onboard solution which, thanks to the many innovative technologies adopted, constitute a real platform, meeting the latest requirements from Railway Authorities, in compliance with current ATP regulations. The System various configurations available, have been provided to important Railway Authorities and Manufacturers of trains and operating machinery: they were in a position to appreciate the aspects of modularity and the low cost of their life-cycle.

The system, being designed according to CENELEC regulations and SIL4 validated, in line with the notions of scalability achieved, can implement the following configurations:

• SCMT/SSC BL3
• SCMT
• ETCS L1
• ETCS L2
• ETCS Lx + SCMT

The MTPS architecture will allow to achieve some major and important results with respect to equipment installed up to now as independent functional units on trains that operate across the state lines in the countries equipped with the above mentioned systems:

• Dramatically reduces the room usually taken up on board
• Implements the transition from a signalling system to another on a fully automatic and transparent way to your driving staff
• Remote controlled diagnostics system works via GSMR/GPRS

The HW of the system belongs to the MTPS platform and allows the implementation of SSC, SCMT and ETCS functions in different SW versions.

Important cost saving actions on system management were possible by reducing the number of components, allowing the sharing of interfaces towards the track-side signalling, the Driving Staff and the logic of the vehicle, as well as the transmission of non-vital service data from the track to the train. This one, along with the maximization of the asset value, lead to a cost reduction of the vehicle's total life cycle.

As far as product's technical features, we paid our special attention to energy saving actions, exploiting innovative technologies like using the latest CPUs, derived from hand-held devices and smart phones. Furthermore the size and volume reduction was carefully designed for the easiest possible installation which does not require any forced ventilation.

COMPONENTS

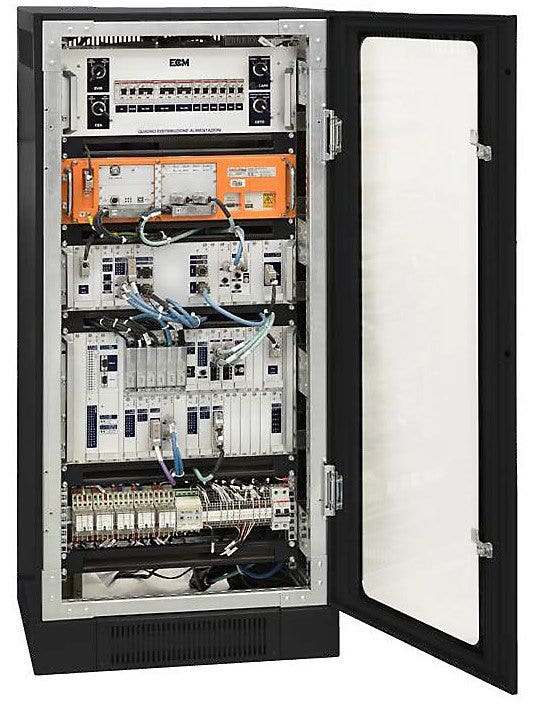

The main components of the MTPS hardware are:

1. KERNEL EVC, the 2oo2 SIL4 central processor performs all the logics of the command and control processing to the track and towards the train.
2. BTM and antenna for reading the Eurobalise.
3. DMI for the interaction between the Driving Staff and the onboard signalling system.
4. Power supply switch panel
5. Microwave antennas and decoding system SSC, they can read any information coming from the microwave antennas of the SSC system.
6. Codes picking up system of the Automatic Block Equipment at Coded Currents (BAcc).

The event recording devices include the presence of:

• Event Recorder fitted with black box
• Smart card reader for the identification of the Driving Staff
• Device for data downloading to the track-side via GSMR / GPRS and Wi-Fi LAN

The system can be interfaced with radio voice equipment with:

• Compact DMI made up of a receiver having a built-in display
• Full DMI, in conformity with EIRENE specifications

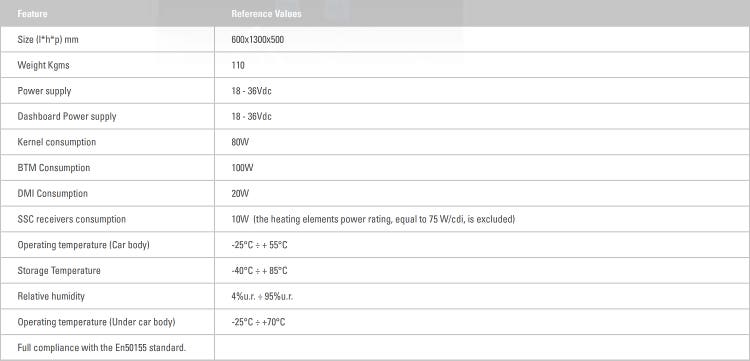

FEATURES
