Stream Flow Detection

< Back

Product Overview



The Progress Rail's Stream Flow Detector provides continuous accurate information about river flow and depth thereby giving advanced warning for flood-ways and river systems. Continuous accurate information about river flow and depth provides advanced warning for floodways and river systems. Yearly maintenance schedules and a dual redundant design provides accurate and reliable monitoring in even the most extreme environments.

This system is designed to provide accurate, reliable monitoring in even the most extreme environments

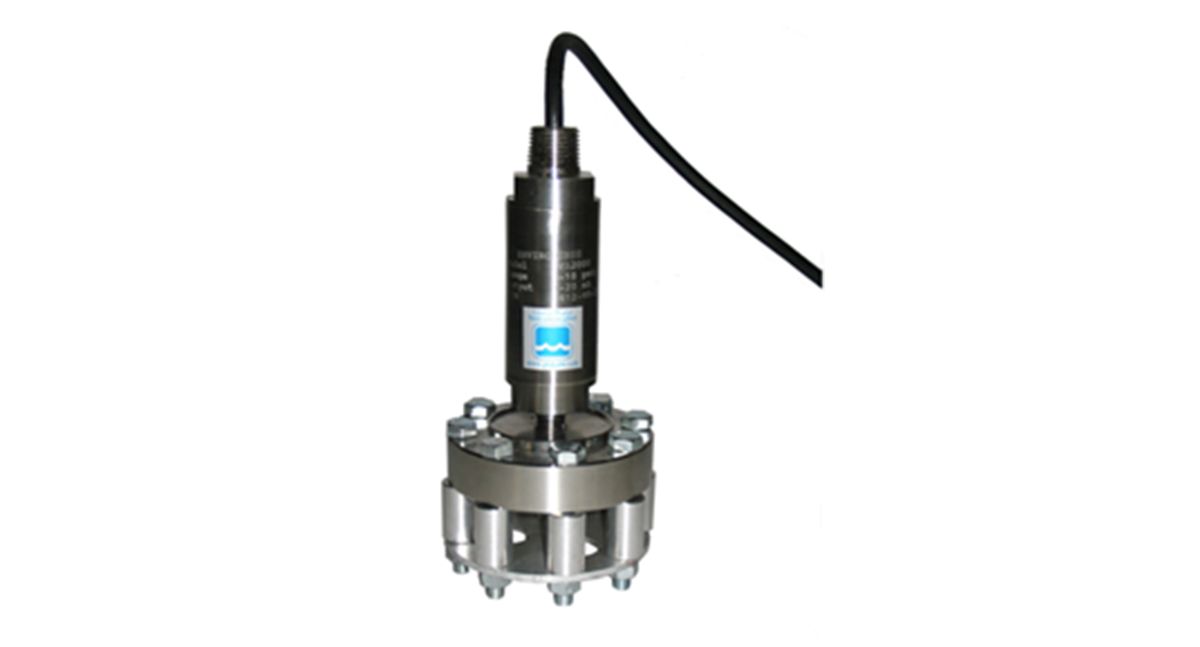

Sensor Specifications

  • Titanium construction
  • Barometric pressure compensation
  • 0.5% accuracy
  • Suitable for peak water depth between 50mm and 125m
  • Double-sealed submersible cable
  • Lifetime warranty against lighting strikes

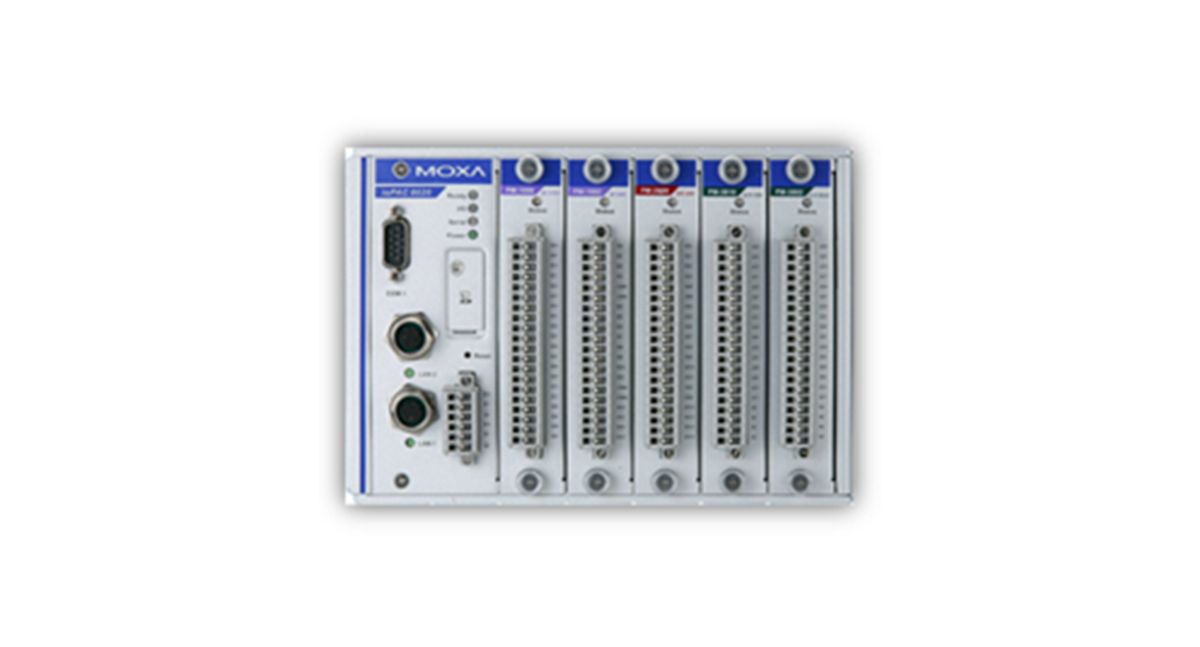

Processor Specifications

  • Industrial grade, purpose made processor
  • Temperature rated to -45┬░ C to 75┬░ C
  • Photocoupler isolated inputs
  • 8-port direct-connect S-SC fibre switch
  • 1 RS-232/422/485 serial port
  • 16 general purpose digital inputs
  • 16 general purpose digital outputs
  • 4 Factory selectable analogue inputs
  • 2x M12 100Mbps Ethernet ports
  • Dual 12-36V DC power inputs
  • Low 7.5W max operating power draw
  • IP-67 enclosure for direct pole-mount installation
  • Designed to suit solar installations
